KUS Multi-Functional NMEA2000 LCD Gauge KMG-20T

KUS Multi-Functional NMEA2000 LCD Gauge KMG-20T

3 watch this article

164,62 €

incl. 21% VAT , plus

NMEA 2000 Multi-Functional LCD Gauge

For this product you will receive 164.62 Reward Points

Only 1 Pcs. left in stock!

Pcs.

Available immediately

Delivery time: 6 - 8 Workdays

Order within the next 8 hours and 59 minutes and we will ship your order on 22.12.

KUS Multi-Functional NMEA2000 LCD Gauge KMG-20T

164,62 €

incl. 21% VAT , plus

Pcs.

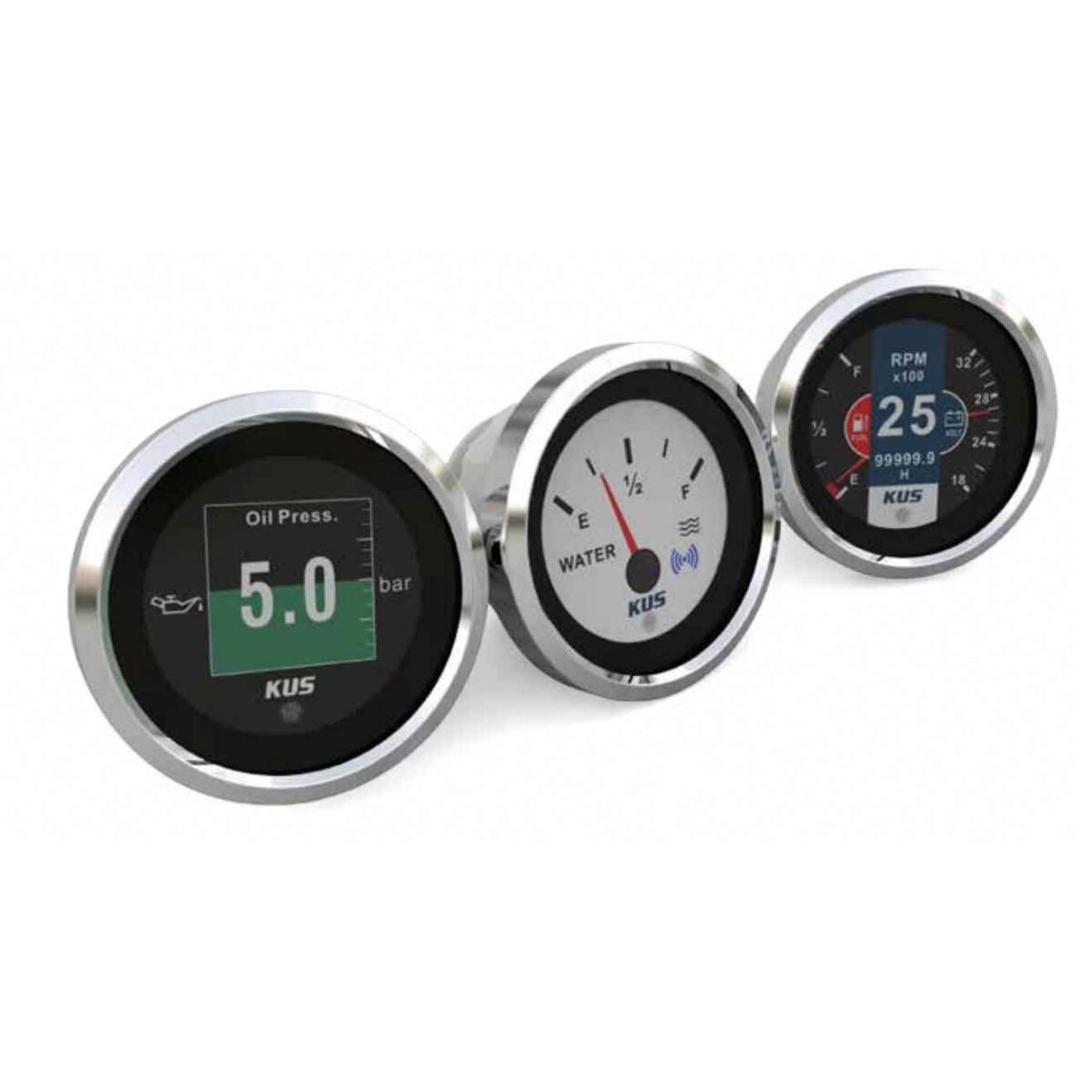

KUS Multi-Functional LCD Gauge KMG-20T

The KMG-20T is a multi-functional digital instrument that Displays functions including voltage, fuel level, water level, water temperature, oil temperature, oil pressure, holding tank and trim on one gauge. It includes a stainless-steel cover to ensure corrosion resistance. Dial, data and instances can be set correspondingly through touch Screen or the mobile app. The unit is compatible with NMEA 2000 Network and analog Signals.

Features

Integrates ten dierent instrument functions
Compatible with NMEA 2000 and 2 analog inputs (1 for resistance, 1 for speed)
Offers black or white gauge dial Colors
Touch screen or download mobile app to complete the instrument instances and firmware upgrade
Alarm Functions: Voltmeter (10 V), Fuel (10%), Water Level (10%), Water Temperature (95°C/203°F), Oil Temperature (100°C/212°F), Oil Pressure (1.0 Bar), Holding Tank (80%), customizable.
10% - 100% backlight brightness
IP67 protection Rating

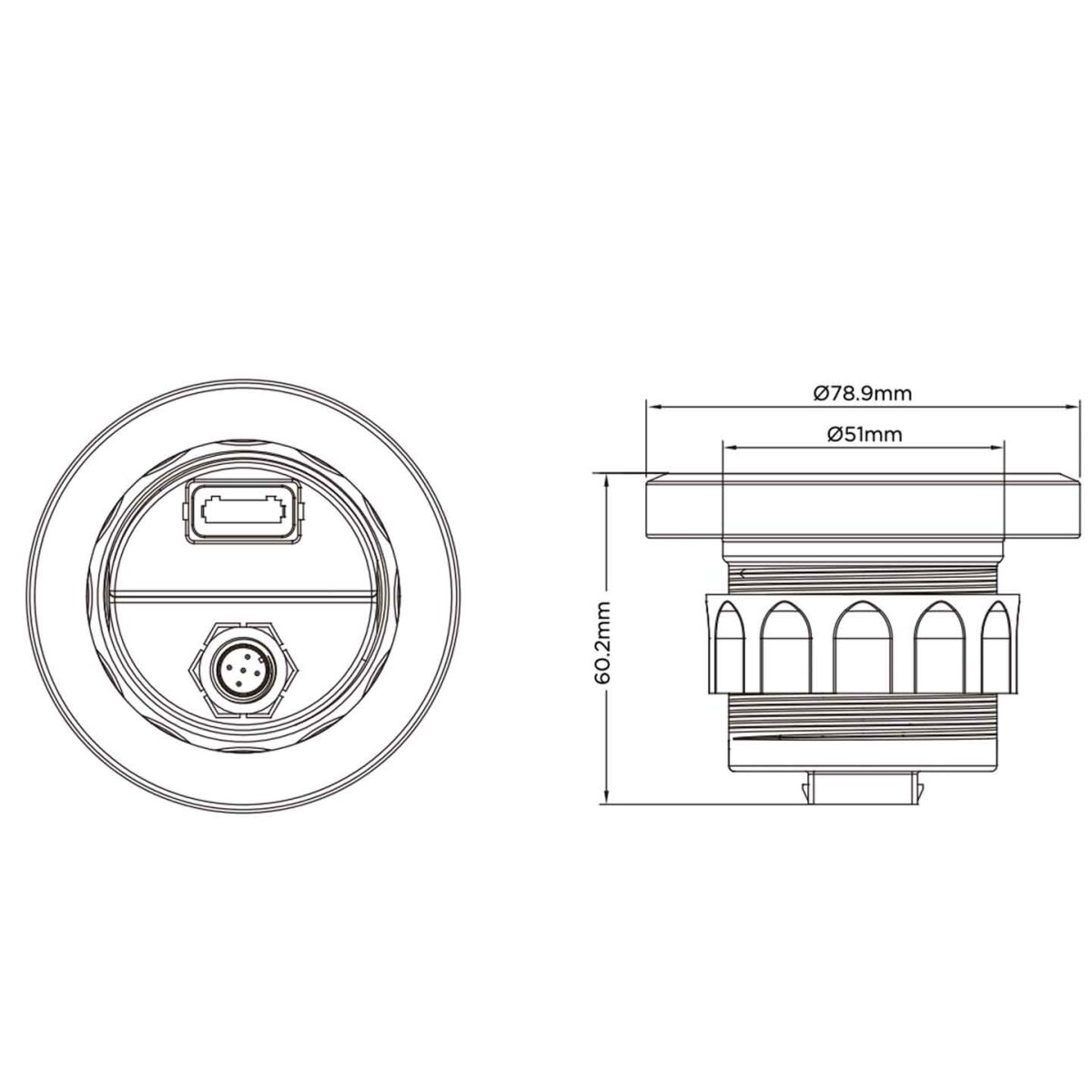

Display Dimentions: Ø 51 mm / Ø 2"
Mounting Dimensions: Ø 51 mm / Ø 2"
Working Voltage: 9-32 VDC
Working Current: ≤100mA (12V)
Resolution: 480 x 480 pixels
Operation Method: Touch Screen and Mobile App
Working Temperature: -20°C to +70°C / -4°F to +158°F
Storage Temperature: -30°C to +80°C / -22°F to +176°F
Accessories: 1m 5-core CAN cable, 1m 6-core analog cable, instructions manual
