KUS S3H holding tank level sensor 20 cm

42,55 €

incl. 21% VAT, plus

Pcs.

KUS Stainless Steel Sewage Level Transmitter, Model S3H (240-33 ohms, U.S. standard) – Specialized wastewater level transmitter with protective cage

Reliably prevent annoying blockages and measurement errors in your wastewater system! The KUS Model S3H was developed exclusively for the extreme challenges posed by sewage tanks (black water) and gray water tanks on board boats and yachts. While conventional sensors in wastewater tanks quickly become blocked by solids, toilet paper, or deposits, the Model S3H offers long-term operational reliability.

The key feature is the integrated stainless steel protective cage, which completely encloses the sensor tube. It reliably keeps coarse particles away from the float while allowing the liquid to pass through unimpeded.

⚠️ Important note regarding the output signal (240–33 ohms, U.S. standard):

This special model operates within the American resistance range of 240–33 ohms (the sensor outputs 240 ohms when the tank is empty and 33 ohms when the tank is full).

Please note: Standard European gauges (0–190 ohms) are not directly compatible with this sensor (the display would be upside down or not work at all). To ensure error-free operation, order the appropriate US-standard gauge directly with:

Combine this sensor directly with our special KUS fuel gauge for sewage/wastewater from our store.
Or use our KUS ohm converter to adapt the signal to an existing 0–190 ohm gauge.

📐 Installation & Measurement Instructions for Model S3H:

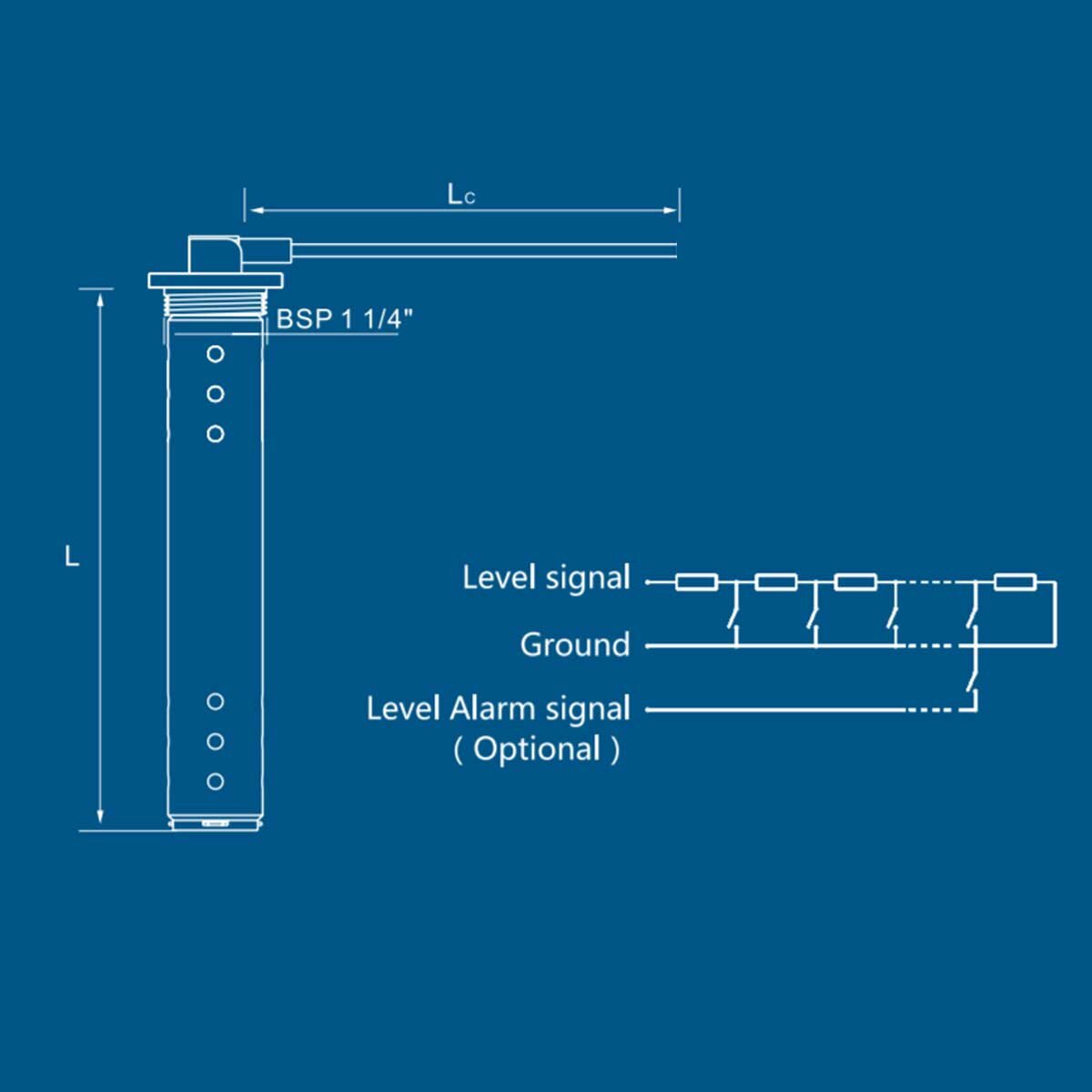

Due to its protective outer cage, the S3H model has a total diameter of 55 mm. Make sure your tank opening is large enough. To determine the length:

Inner clear tank height minus at least 15 mm to 20 mm = your ideal sensor length. Contact with the tank bottom must be avoided at all costs.
Mounting: Convenient 1 1/4" BSP screw-in thread including a professional O-ring seal.

Advantages & Technical Highlights at a Glance:

Clog-free design: The perforated protective sleeve made of V4A stainless steel protects the internal magnetic float from becoming stuck due to suspended solids and fecal residues.
Durable & Odor-Free: The entire system is made of high-purity AISI 316 stainless steel. It does not absorb any odors and can be easily rinsed under running water during tank cleaning.
Reliable magnetic switch technology: No exposed sliding contacts or levers that can corrode. The internal float glides along the pipe without making contact.
Dual-Voltage Compatibility: Operates flawlessly in both 12-volt and 24-volt systems.
Robustly sealed cable: The sensor features a completely watertight connection cable approximately 45 cm long. The solid sealant at the cable outlet reliably prevents moisture and gases from entering from the waste tank.

Technical Data (Specifications):

Property	Specification / Value
Manufacturer / Brand	KUS
Model Type	S3H (With protective basket for fecal matter / black water)
Outer Diameter of Basket	55 mm (Please note the tank opening!)
Mounting Thread	1 1/4" BSP screw-in thread
Material	Stainless steel AISI 316 / V4A
Output signal	240–33 ohms (U.S. standard / American standard)
Protection Class	IP67 (completely dust- and waterproof)
Cable length	approx. 450 mm (45 cm) / Permanently encapsulated
